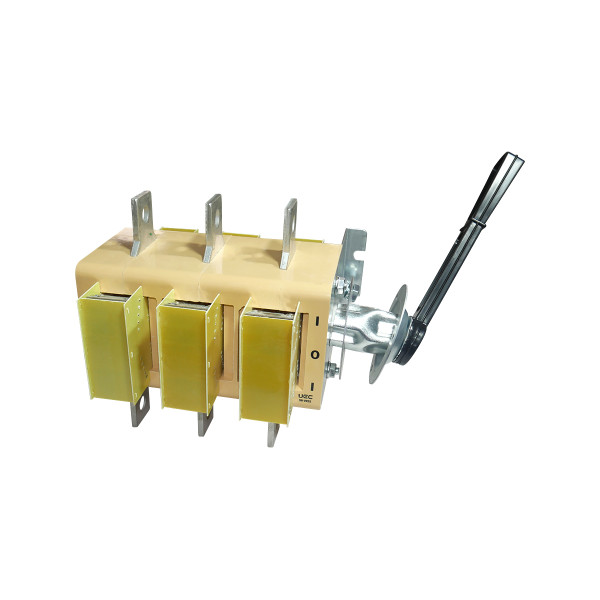

Switch-disconnectors VR32-39B71250 630А UEC

Switch-disconnectors VR32-39B71250 630А UEC

SB-VR32-39B71-2-630
Product price:
6 656.20uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Ambient temperature range, ˚С
-60 ... 45˚С
Brand
UEC
Insulation voltage Ui, V
690
Maintainability
beyond repair
Material of the connecting conductors
copper, aluminum
Maximum cross-section of connected conductors, mm2
150…4x120
Maximum operating voltage Ue AC, V
690
Mechanical endurance, cycles, not less than
16000
Rated impulse withstand voltage Uimp, kV
8
Rated operating current In, A
630
Warranty period (starting on purchase date)
5 years
The ВР32 single- and double-pole disconnect switches are designed for closing, switching, bypassing, and opening AC circuits with a rated voltage of up to 690 V and a frequency of 50 Hz.
Warranty period:5 років гарантії
Warranty period:5 років гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
2 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
13.900 kg
Volume
0.000000 m3
0.000000 m3
0.022344 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
Declarations
Link to the declaration
