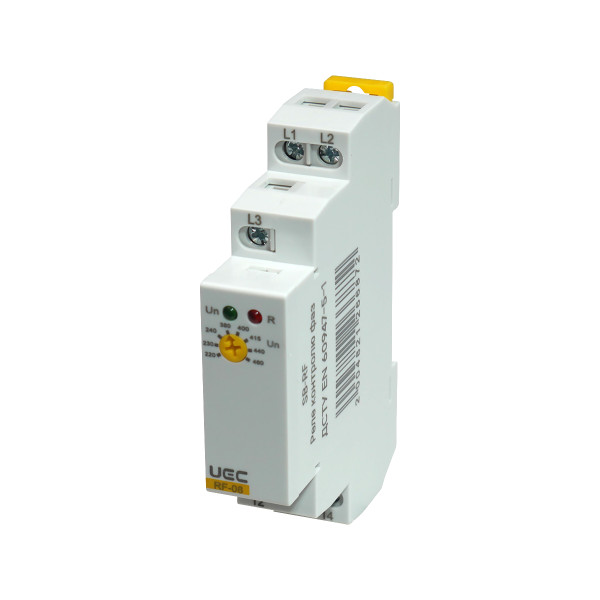

Phase relay RF 08 3-phase 220–460 V AC UEC

Phase relay RF 08 3-phase 220–460 V AC UEC

SB-RF-08-220-460VAC
Product price:
784.50грн/за одиницю
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Brand
UEC
Maintainability
unrepairable
Mechanical endurance, cycles, not less than
10000000
Nominal voltage AC Un, (V)
220÷460
Number of phases
3
Number of switching contacts (SPDT)
1
Operating ambient temperature range, ˚С
-20 ... 55˚С
Protection degree according to EN 60529
IP20
Rated current, A
10
Rated frequency, Hz
45-65
Rated impulse withstand voltage Uimp, kV
6
Warranty period (starting on purchase date)
2 years
Phase relays are designed to monitor voltage parameters (phase sequence, asymmetry, overvoltage and undervoltage) and transmit commands.
Warranty period:2 роки гарантії
Warranty period:2 роки гарантії
Individual
Group
Transport
Quantity
1 pcs
10 pcs
60 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
4.800 kg
Volume
0.000000 m3
0.000000 m3
0.009240 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
Declarations
Link to the declaration
