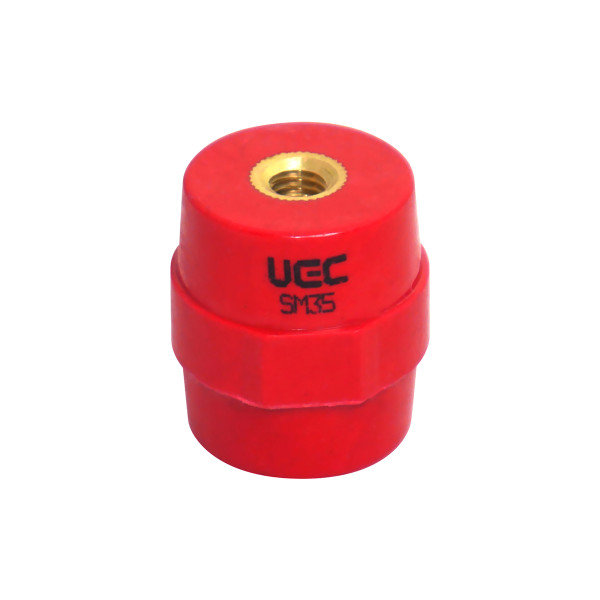

Isolator SM35 (M8) power UEC

Isolator SM35 (M8) power UEC

SB-SM-35-08-U
Product price:
27.50грн/за одиницю
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Ambient temperature range, ˚С
-40 ... 60˚С
Brand
UEC
Maintainability
beyond repair
Materials
polymer material
Metric thread size
М8
Number of poles
1P
Rated operating current In, A
380
Rated voltage, V
1000
Warranty period (starting on purchase date)
3 years
SM insulators are used for fastening conductive buses in power cabinets, as well as for fixing and insulating conductive parts from the housing and mounting panels, with subsequent connection of power conductors for power distribution inside the panel.
Warranty period:3 роки гарантії
Warranty period:3 роки гарантії
Individual
Group
Transport
Quantity
1 pcs
10 pcs
500 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
29.000 kg
Volume
0.000000 m3
0.000000 m3
0.030000 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
