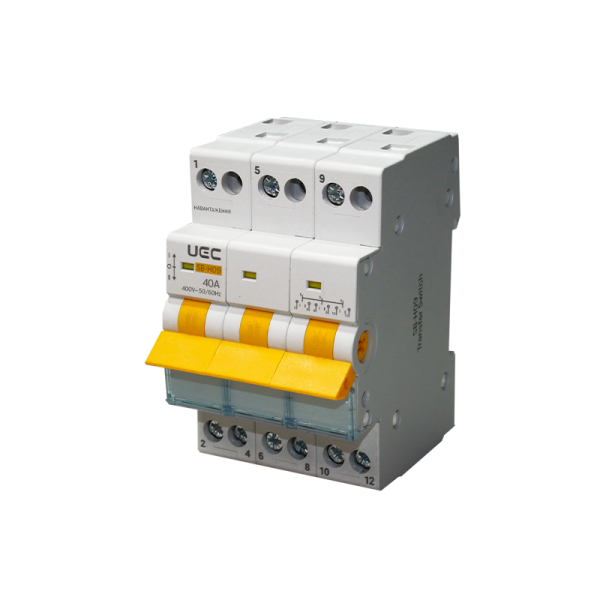

Transfer Switch SB-H09-63 3P 40А UEC

Transfer Switch SB-H09-63 3P 40А UEC

MTS-3-040
Product price:
480.40грн/за одиницю
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Ambient temperature range, ˚С
-25 ... 40˚С
Electrical endurance, cycles, not less than
1500
Insulation voltage Ui, V
415
Maintainability
beyond repair
Maximum cross-section of connected conductors, mm2
6 А ÷ 40 А - 2,5 мм2 ÷ 10 50 А ÷ 63 А - 2,5 мм2 ÷ 16
Mechanical endurance, cycles, not less than
10000
Nominal operating voltage of direct current Ue, V
400
Number of poles
3P
Rated impulse withstand voltage Uimp, kV
4
Rated operating current In, A
40
Tightening torque of the terminal screws when using a screwdriver, N∙m
2
Warranty period (starting on purchase date)
10 years
The three-position switch-disconnector SB-H09-63 is designed for switching mixed active and inductive loads in alternating current circuits with a voltage of up to 400 V and a frequency of 50 Hz.
Warranty period:10 років гарантії
Warranty period:10 років гарантії
Individual
Group
Transport
Quantity
1 pcs
4 pcs
40 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
0.000 kg
Volume
0.000000 m3
0.000000 m3
0.000000 m3
Length
0.000 m
0.000 m
0.470 m
Height
0.000 m
0.000 m
0.235 m
Width
0.000 m
0.000 m
0.180 m
Passports
Link to passport
Certificates
Link to the certificate
Declarations
Link to the declaration
