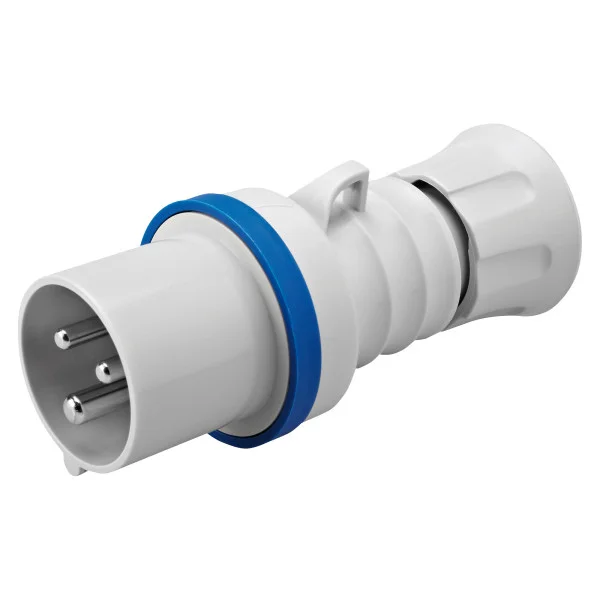

PLUG HP IP44 2P+E 16A 230V 6H

PLUG HP IP44 2P+E 16A 230V 6H

GW60004H
Product price:
190.00uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Ambient temperature range, ˚С
-25…+55˚С
Insulation resistance, MOm
>10
Lifetime
10 years
Maintainability
unrepairable
Maximum load power, W
3,68 kW
Number of poles
2P
Protection degree according to EN 60529
IP44
Protection degree according to IEC 62262
IK09
Rated frequency, Hz
50/60
Rated operating current In, A
16
Rated operating voltage AC 50/60 Hz Ue, V
230
Standard version
Straight plug 6H
Warranty period (starting on purchase date)
One year
Wiring cable section - flexible, mm2
1-2.5
Wiring cable section - rigid, mm2
1.5-4
Сontacts
2P+E
HP IEC309 connectors are used for power supply of temporary constructions, electrical equipment connection, etc
Expiry date:10 years
Expiry date:10 years
Warranty period:1 рік гарантії
Warranty period:1 рік гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
100 pcs
Units
pcs
pcs
box
Weight
0.000 kg
0.000 kg
14.000 kg
Volume
0.000000 m3
0.000000 m3
0.090000 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
