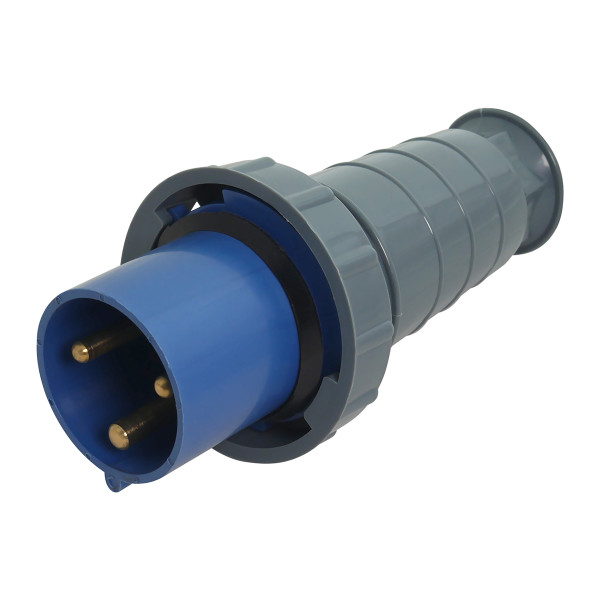

Portable plug 033 63A-6h 230V 2P+PE IP67 UEC

Portable plug 033 63A-6h 230V 2P+PE IP67 UEC

HPC-P033-063-3-IP67-U
Product price:
446.10uah/per unit
Out Of Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Ambient temperature range, ˚С
-25…+40˚С
Brand
UEC
Lifetime
10 years
Maintainability
unrepairable
Maximum cross-section of connected conductors, mm2
16,0
Number of poles
3
Protection degree according to EN 60529
IP67
Rated frequency, Hz
50
Rated operating current In, A
63
Rated operating voltage AC 50/60 Hz Ue, V
220
Standard version
Straight plug 6H
Warranty period (starting on purchase date)
5 years
Сontacts
2P+E
Power connectors are designed for operation indoors and outdoors with mobile and stationary electrical equipment of single-phase and three-phase versions with a grounding contact, as well as versions with a neutral (depending on the connector type).
Expiry date:10 years
Expiry date:10 years
Warranty period:5 років гарантії
Warranty period:5 років гарантії
Individual
Group
Transport
Quantity
1 pcs
2 pcs
10 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
7.100 kg
Volume
0.000000 m3
0.000000 m3
0.029000 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
