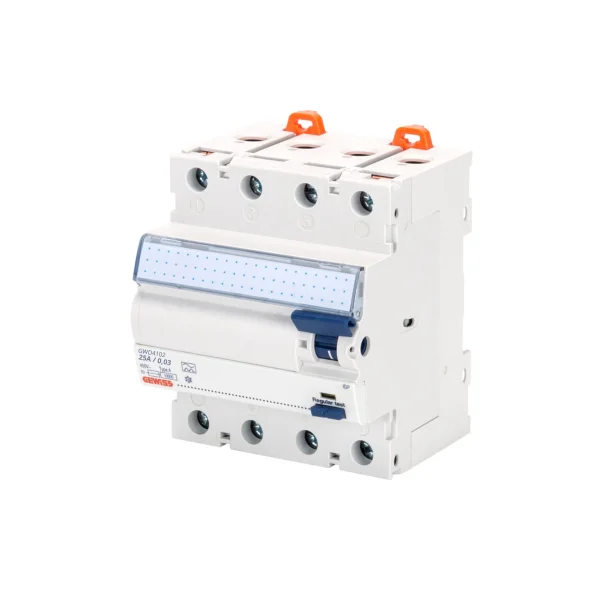

RCCB 4P 25A AC/0,03 4M

RCCB 4P 25A AC/0,03 4M

GWD4102
Product price:
1 650.20uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Compatibility with ancillary products
compatible
Electrical endurance, cycles, not less than
10000
Insulation voltage Ui, V
500
Maintainability
unrepairable
Mechanical endurance, cycles, not less than
20000
Mounting position
any
Number of poles
4P
Operating characteristic in case of differential current with a DC component, type
АС
Operating mode
long
Operating temperature, ° C
- 25 ... + 70 (reduction of nominal characteristics at T>40°C)
Overvoltage category
ІІІ
Protection degree according to EN 60529
IP20
Rated current In, A
25A
Rated frequency, Hz
50/60
Rated impulse withstand voltage Uimp, kV
4
Rated operational voltage Ue, V
400/415
Rated residual operating current (setpoint) IΔn, mA
30
Rated tightening torque, N·m
3
Warranty period (starting on purchase date)
One year
Wiring cable section - flexible, mm2
<=1x35 - <=2x16 - <=1x16+2x10
Wiring cable section - rigid, mm2
<=1x35 - <=2x16 - <=1x16+2x10
The RCCB residual current circuit breaker (RCCB) is designed for use in AC power networks with a frequency of 50/60 Hz and voltage of 230/240 V.
Warranty period:One year
Warranty period:One year
Individual
Group
Transport
Quantity
1 pcs
1 pcs
3 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
1.095 kg
Volume
0.000000 m3
0.000000 m3
0.003777 m3
Length
0.096 m
0.000 m
0.000 m
Height
0.072 m
0.000 m
0.000 m
Width
0.078 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
Declarations
Link to the declaration
