Top sellers

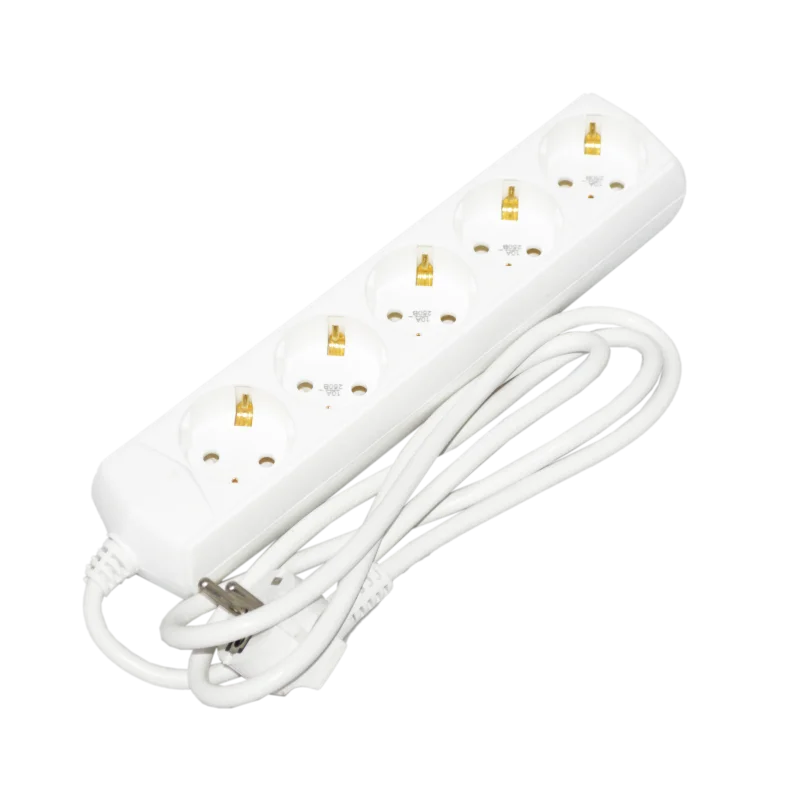

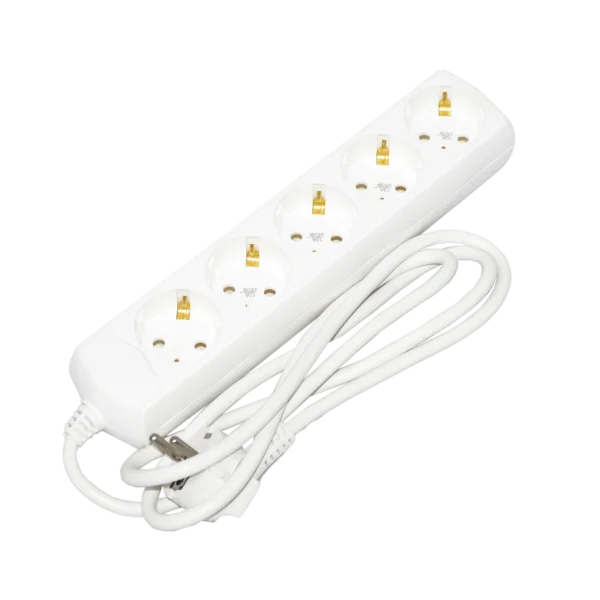

Extension cord P05 5 sockets 2P+PE/1,5m 3х1mm2 10A/250V ECO UEC
Extension cord P05 5 sockets 2P+PE/1,5m 3х1mm2 10A/250V ECO UEC
Extension cord P05 5 sockets 2P+PE/1,5m 3х1mm2 10A/250V ECO UEC
Extension cord P05 5 sockets 2P+PE/1,5m 3х1mm2 10A/250V ECO UEC Extension cord P05 5 sockets 2P+PE/1,5m 3х1mm2 10A/250V ECO UEC Extension cord P05 5 sockets 2P+PE/1,5m 3х1mm2 10A/250V ECO UEC

Extension cord P05 5 sockets 2P+PE/1,5m 3х1mm2 10A/250V ECO UEC

WYP10-10-05-D15-G-G-U
Product price:
161.20uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Height, mm
268
Cable length, m
1.5
Cross-section of flexible cable conductors, mm2
3 × 1,0
Delivery set, pcs.
Extension cord - 1, Passport - 1
Depth, mm
52
Frequency, Hz
50
Length, mm
43
Lifetime
5 years
Maintainability
unrepairable
Maximum load power, W
2500
Number of sockets, pcs.
5
Operating temperature
-45…+50˚С
Protection class according to EN 61140
I
Protection degree
IP20
Rated current, A
10
Rated voltage, V
250
Standard version
PО5
Switch
without a switch
Warranty period (starting on purchase date)
1 year
Width. mm
43
ECO series extension cords are designed to connect several electrical consumers to a single-phase 230V/50Hz supply network.
Expiry date:5 years
Expiry date:5 years
Warranty period:1 year
Warranty period:1 year
Individual
Group
Transport
Quantity
1 pcs
1 pcs
40 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
11.520 kg
Volume
0.000000 m3
0.000000 m3
0.042800 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
Declarations
Link to the declaration
