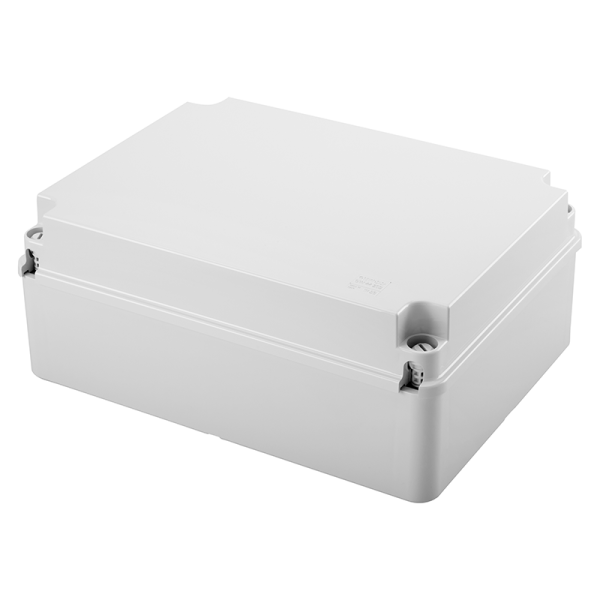

JUNCT.BOX SMOOTH WALLS 300X220X120 IP56

JUNCT.BOX SMOOTH WALLS 300X220X120 IP56

GW44209
Product price:
1 953.60uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Colour
gray
Depth, mm
120
Length, mm
220
Lifetime
15 years
Material.
technopolymer GWPLAST 75, halogen-free
Operating temperature
- 25 ᴼ C…+60 ᴼ С
Protection degree according to EN 60529
IP56
Protection degree according to IEC 62262
IK08
Rated voltage Un, V
230
Screws material
stainless steel
Warranty period (starting on purchase date)
1 year
Width. mm
300
Surface-mounted junction boxes are designed for branching wires and cables, as well as for hiding and additional protection of switching points. They are used as part of an electrical system consisting of rigid, flexible pipes, cable ducts, etc.The boxes can be used outdoors, as well as in damp and dusty areas.
Expiry date:15 years
Expiry date:15 years
Warranty period:1 рік гарантії
Warranty period:1 рік гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
6 pcs
Units
pcs
pcs
box
Weight
0.000 kg
0.000 kg
6.468 kg
Volume
0.000000 m3
0.000000 m3
0.078000 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
Passports
Certificates
Declarations
Connection diagrams
