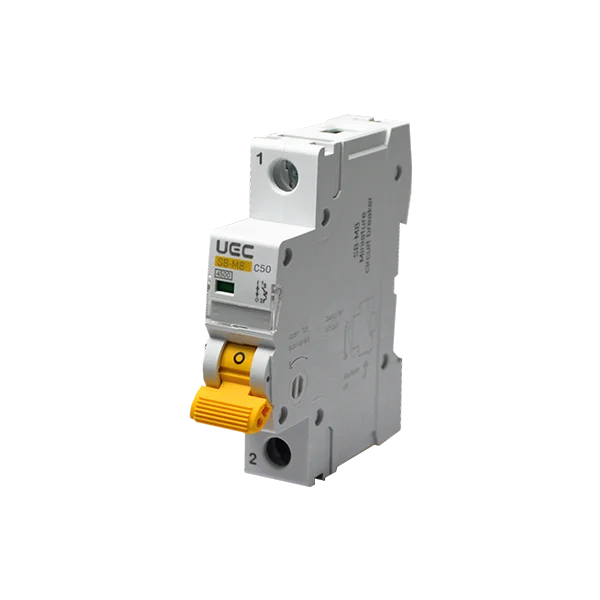

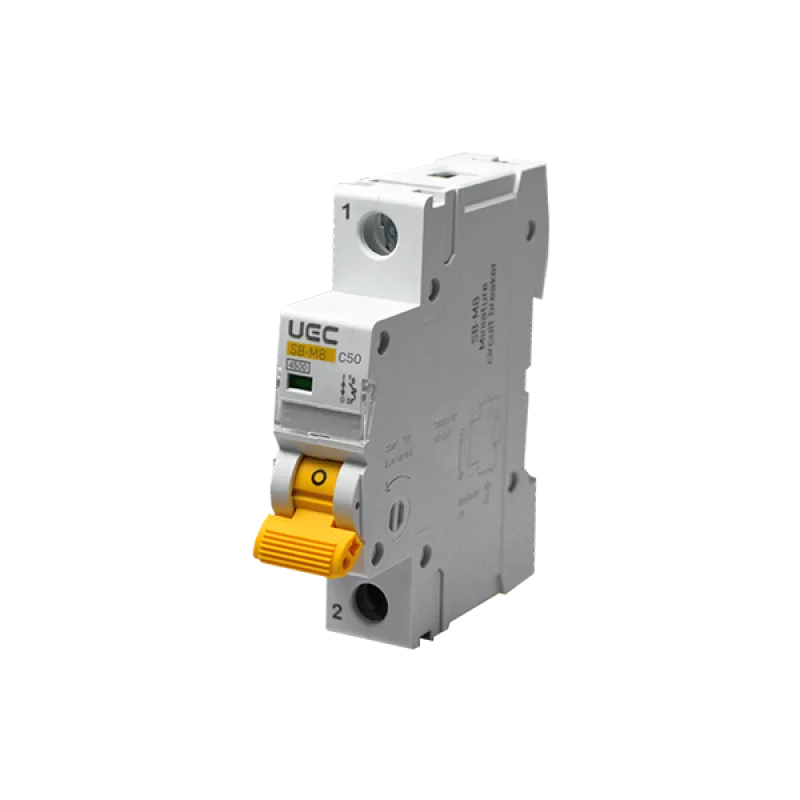

Miniature circuit breaker SB-M8 1P 50A type C 4,5kA UEC
Miniature circuit breaker SB-M8 1P 50A type C 4,5kA UEC
Miniature circuit breaker SB-M8 1P 50A type C 4,5kA UEC Miniature circuit breaker SB-M8 1P 50A type C 4,5kA UEC

Miniature circuit breaker SB-M8 1P 50A type C 4,5kA UEC

MCB45-1-050-C
Product price:
86.20грн/за одиницю
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Availability
in all poles
Breaking capacity (Icn), А
4500
Cross-section of the wire connected to the contact clamps, mm2
1-25
Curve, type
C
Electrical endurance, cycles, not less than
10000
Insulation voltage Ui, V
500
Maintainability
unrepairable
Mechanical endurance, cycles, not less than
20000
Number of poles
1Р
Operating mode
long
Protection degree according to EN 60529
IP20
Rated frequency, Hz
50/60
Rated impulse withstand voltage Uimp, kV
4
Rated operating current In, A
50А
Rated operating voltage AC 50/60 Hz Ue, V
230
Rated tightening torque, N·m
2
Warranty period (starting on purchase date)
10 years
Working temperature, ˚С
-40 ... 50˚С
SB-M8 automatic circuit breakers are designed to protect distribution and group networks of alternating current with a nominal voltage of no more than 400 V at a frequency of 50/60 Hz.
Warranty period:10 років гарантії
Warranty period:10 років гарантії
Individual
Group
Transport
Quantity
1 pcs
12 pcs
120 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
12.720 kg
Volume
0.000000 m3
0.000000 m3
0.019920 m3
Length
0.000 m
0.000 m
0.470 m
Height
0.000 m
0.000 m
0.235 m
Width
0.000 m
0.000 m
0.180 m
Passports
Link to passport
Certificates
Link to the certificate
