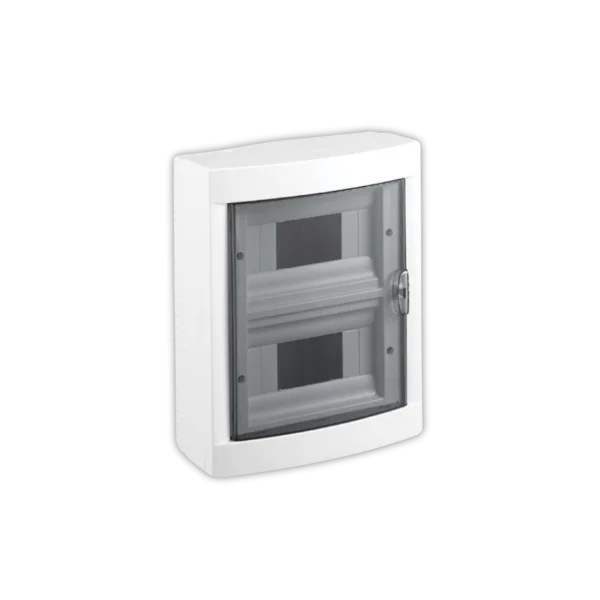

Plastic box SHRN-P-24 mod. 2row 295х337х100 IP40 UEC

Plastic box SHRN-P-24 mod. 2row 295х337х100 IP40 UEC

MDK23-N-24-40-UEC
Product price:
561.50uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Installed devices rated current, A, not more than
100
Delivery set
Plastic box - 1 pc; Manual - 1 pc; DIN-rail - 1 pc; PEN busbar - 1 pc; Busbar connecting screw - 1 pc; Front panel and door join screw - 2 pcs; self-tapping screw with dowel for a wall-mounting - 4 pcs.
Lifetime
15 years
Maintainability
unrepairable
Max number of installed modular devices
24
Number of rows
2
Operating temperature
- 40 … + 50 °С
Protection class against electric shock
ІІ
Protection degree according to IEC 60529
ІР40
Protection degree against external mechanical impact according to IEC 62262
ІК10
Rated insulation voltage Ui, V
690
Rated voltage, V
230/400
Relative humidity
75 % at + 15 °C
Warranty period
5 years
Weight, kg
1.27
Plastic modular boxes with doors are designed for an installation of modular distribution equipment. Alternating current maximum voltage - 400 V/ 50 Hz frequency.
Expiry date: 15 years
Expiry date: 15 years
Warranty period: 5 years
Warranty period: 5 years
Individual
Group
Transport
Quantity
1 pcs
1 pcs
10 pcs
Units
pcs
pcs
box
Weight
0.000 kg
0.000 kg
12.700 kg
Volume
0.000000 m3
0.000000 m3
0.108000 m3
Length
0.300 m
0.300 m
0.000 m
Height
0.345 m
0.345 m
0.000 m
Width
0.105 m
0.105 m
0.000 m
Passports
Link to passport
