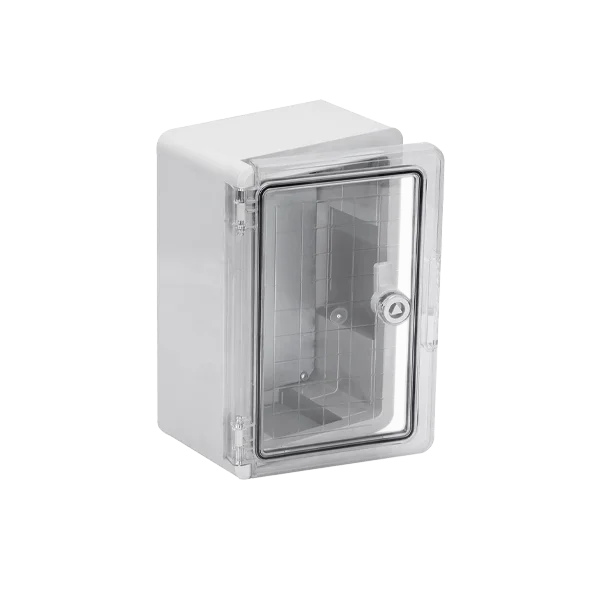

Plastic enclosure with mounting panel with transparent door 700x500x250mm IP65 UEC

Plastic enclosure with mounting panel with transparent door 700x500x250mm IP65 UEC

MKP92-N-705025-65-UEC
Product price:
4 901.50uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Installed devices rated current, A, not more than
100
Colour
gray
Depth, mm
250
Length, mm
700
Lifetime
10 years
Maintainability
unrepairable
Material.
ABS plastic; door - polycarbonate
Operating temperature
- 45 … + 80 °С
Protection degree according to IEC 60529
ІР65
Protection degree against external mechanical impact according to IEC 62262
ІК10
Rated insulation voltage Ui, V
660
Rated voltage, V
230/400
Relative humidity
90% за +20 °С
Static load, N
48
Warranty period (starting on purchase date)
5 years
Weight, kg
8.65
Width. mm
500
Plastic boxes ЩМПп IP65 are designed to accommodate electrical, telecommunication, telemetry equipment, as well as the installation of power and control equipment of alternating currentcurrent maximum voltage - 400 V/ 50 Hz frequency.
Expiry date: 10 years
Expiry date: 10 years
Warranty period: 5 years
Warranty period: 5 years
Individual
Group
Transport
Quantity
1 pcs
1 pcs
1 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
8.366 kg
Volume
0.000000 m3
0.000000 m3
0.088000 m3
Length
0.700 m
0.000 m
0.000 m
Height
0.500 m
0.000 m
0.000 m
Width
0.250 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
