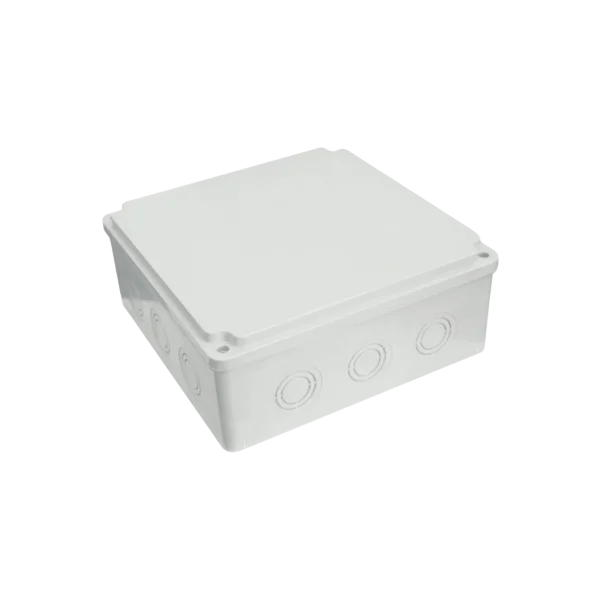

Junction box 200х200х80 mm UEC IP65

Junction box 200х200х80 mm UEC IP65

UKO11-200-200-080-IP65-U
Product price:
234.00uah/per unit
Pre-Order
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Colour
gray
Depth, mm
80
Insulation resistance at 500 V DC, MΩ, not less than
100
Length, mm
200
Lifetime
15 years
Material.
ABS plastic
Operating temperature
- 5 ° С … + 60 ° С
Protection degree according to EN 60529
IP65
Protection degree according to IEC 62262
ІК10
Rated insulation voltage Ui, V
450
Rated pulse voltage Uimp, kV
4
Rated voltage Un, V
4
Relative air humidity
75% at +15 °C
Screws material
stainless steel
Warranty period (starting on purchase date)
1 year
Width. mm
200
Junction boxes are designed for the mounting on walls made of non- and low-combustive materials inside the buildings. They protect 230V DC/AC wiring (incl alarm and communication cords) from external hazards in residential and public premises.
Expiry date:15 years
Expiry date:15 years
Warranty period:1 рік гарантії
Warranty period:1 рік гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
24 pcs
Units
pcs
pcs
box
Weight
0.000 kg
0.000 kg
10.584 kg
Volume
0.000000 m3
0.000000 m3
0.100008 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
