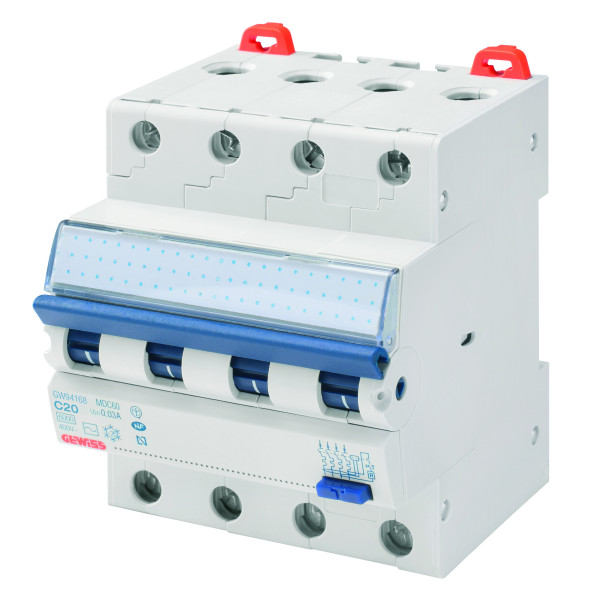

COMPACT RCBO 4P C20 6KA AC/0.03 4M

Name: COMPACT RCBO 4P C20 6KA AC/0.03 4M
Brand: GEWISS
SKU: GW94168
Price: 4811.40 UAH
Availability: InStock

GW94168

Product price:

4 811.40uah/per unit

In Stock

Where to buy?

* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores

Attributes
Product description
Logistics parameters
Technical documentation

Breaking capacity IEC/EN 60947-2 (Ics)

Breaking capacity IEC/EN 60947-2 230V (Icu), kA

Breaking capacity IEC/EN 61009- 1 (Ics)

1 x Icn

Breaking capacity IEC/EN 61009-1 230V (Icn), A

6000

Compatibility with ancillary products

compatible

Curve, type

Electrical endurance, cycles, not less than

10000

Insulation voltage Ui, V

500

Maintainability

unrepairable

Mechanical endurance, cycles, not less than

20000

Mounting position

any

Operating characteristic in case of differential current with a DC component, type

АС

Operating mode

long

Operating temperature, ° C

- 25 ... + 60 (reduction of In nominal characteristics with T>30°C)

Protection degree according to EN 60529

IP20

Rated current In, A

Rated frequency, Hz

50/60

Rated impulse withstand voltage Uimp, kV

Rated operational voltage Ue, V

400/415

Rated residual operating current (setpoint) IΔn, mA

Rated tightening torque, N·m

Wiring cable section - flexible, mm2

<=1x35 - <=2x16 - <=1x16+2x10

Wiring cable section - rigid, mm2

<=1x35 - <=2x16 - <=1x16+2x10

The COMPACT RCBO differential circuit breaker is designed for operation in AC electrical networks with a frequency of 50/60 Hz and a voltage of 230/415 V. The MDC60 GEWISS differential circuit breaker is designed to protect AC electrical networks with a rated voltage of 230/415 V and a frequency of 50/60 Hz. This circuit breaker provides reliable protection against short circuits and overloads, and also provides a differential protection function for increased safety. By choosing a GEWISS circuit breaker, you get reliable protection, long service life and efficiency in operation even in difficult conditions.
