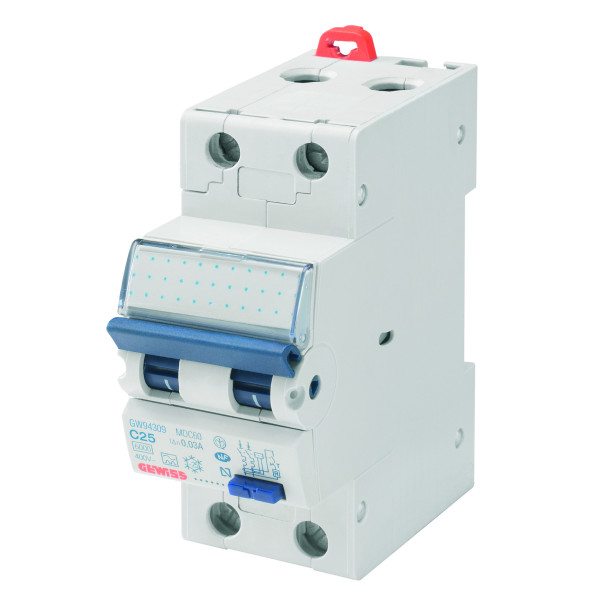

COMPACT RCBO 1P+N C25 6KA A/0.03 2M

COMPACT RCBO 1P+N C25 6KA A/0.03 2M

GW94309
Product price:
1 886.80uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Breaking capacity IEC/EN 60947-2 (Ics)
10
Breaking capacity IEC/EN 60947-2 230V (Icu), kA
10
Breaking capacity IEC/EN 61009- 1 (Ics)
1 x Icn
Breaking capacity IEC/EN 61009-1 230V (Icn), A
6000
Compatibility with ancillary products
compatible
Curve, type
С
Electrical endurance, cycles, not less than
10000
Insulation voltage Ui, V
500
Maintainability
unrepairable
Mechanical endurance, cycles, not less than
20000
Mounting position
any
Operating characteristic in case of differential current with a DC component, type
А
Operating mode
long
Operating temperature, ° C
- 25 ... + 60 (reduction of In nominal characteristics with T>30°C)
Protection degree according to EN 60529
IP20
Rated current In, A
25
Rated frequency, Hz
50/60
Rated impulse withstand voltage Uimp, kV
4
Rated operational voltage Ue, V
230/240
Rated residual operating current (setpoint) IΔn, mA
30
Rated tightening torque, N·m
2
Wiring cable section - flexible, mm2
<=1x35 - <=2x16 - <=1x16+2x10
Wiring cable section - rigid, mm2
<=1x35 - <=2x16 - <=1x16+2x10
The COMPACT RCBO differential circuit breaker is designed for operation in AC electrical networks with a frequency of 50/60 Hz and a voltage of 230/415 V. The MDC60 GEWISS differential circuit breaker is designed to protect AC electrical networks with a rated voltage of 230/415 V and a frequency of 50/60 Hz. This circuit breaker provides reliable protection against short circuits and overloads, and also provides a differential protection function for increased safety. By choosing a GEWISS circuit breaker, you get reliable protection, long service life and efficiency in operation even in difficult conditions.
Warranty period:1 рік гарантії
Warranty period:1 рік гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
1 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
0.268 kg
Volume
0.000000 m3
0.000000 m3
0.000477 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
