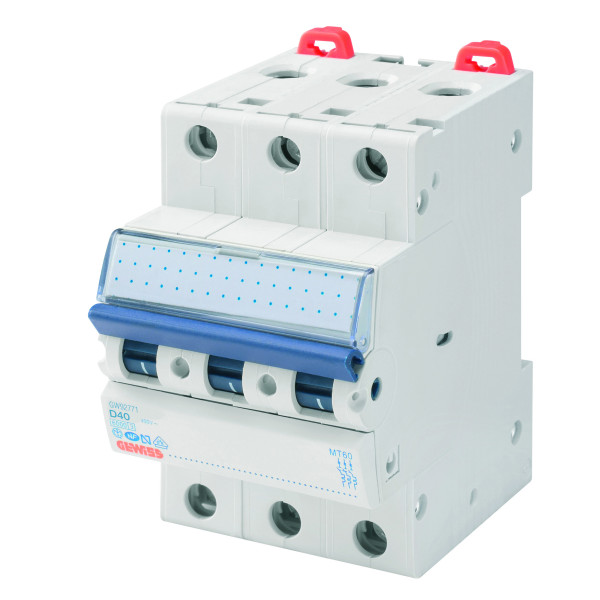

MCB 3P D40 10KA 3M

MCB 3P D40 10KA 3M

GW92771
Product price:
1 397.30uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Availability
in all poles
Breaking capacity, AC EN 60898 230В (Icn), А
10000
Curve, type
D
Electrical endurance, cycles, not less than
10000
Insulation voltage Ui, V
500
Maintainability
unrepairable
Maximum operating voltage
440В AC / 220В DC
Mechanical endurance, cycles, not less than
20000
Minimum operating voltage
12В AC / DC
Number of poles
1Р
Operating mode
long
Protection degree according to EN 60529
IP20
Rated frequency, Hz
50/60
Rated impulse withstand voltage Uimp, kV
4
Rated operating current In, A
40
Rated operating voltage AC 50/60 Hz Ue, V
230/400
Rated tightening torque, N·m
2
Warranty period (starting on purchase date)
One year
Wiring cable section - flexible, mm2
<=1x35 - <=2x16 - <=1x16+2x10
Wiring cable section - rigid, mm2
<=1x35 - <=2x16 - <=1x16+2x10
Working temperature, ˚С
-25 ... 60˚С
MT100 circuit breakers are designed to protect distribution and group AC networks with a rated voltage of no more than 400 V and a frequency of 50/60 Hz. The MT100, 10kA GEWISS circuit breaker provides reliable protection against overloads and short circuits. By choosing a GEWISS circuit breaker, you get a reliable level of safety, effective protection of the electrical network and durability.
Warranty period:1 рік гарантії
Warranty period:1 рік гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
1 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
0.492 kg
Volume
0.000000 m3
0.000000 m3
0.000750 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
