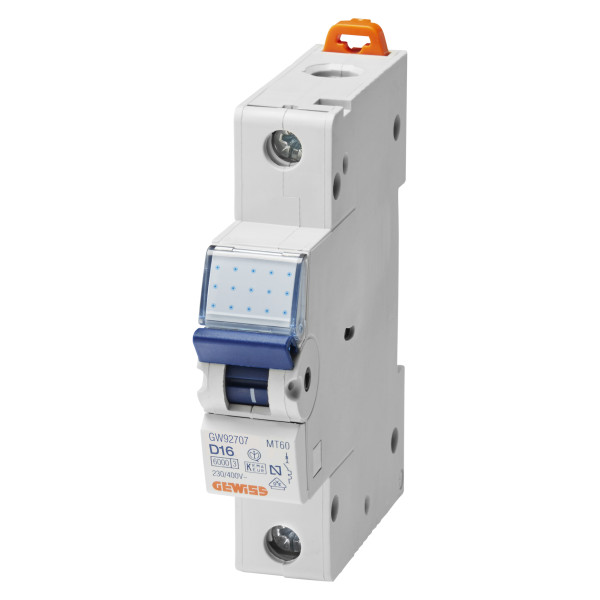

MCB 1P D16 10KA 1M

Name: MCB 1P D16 10KA 1M
Brand: GEWISS
SKU: GW92707
Price: 424.40 UAH
Availability: InStock

GW92707

Product price:

424.40uah/per unit

In Stock

Where to buy?

* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores

Attributes
Product description
Logistics parameters
Technical documentation

Availability

in all poles

Breaking capacity, AC EN 60898 230В (Icn), А

10000

Curve, type

Electrical endurance, cycles, not less than

10000

Insulation voltage Ui, V

500

Maintainability

unrepairable

Maximum operating voltage

440В AC / 220В DC

Mechanical endurance, cycles, not less than

20000

Minimum operating voltage

12В AC / DC

Number of poles

1Р

Operating mode

long

Protection degree according to EN 60529

IP20

Rated frequency, Hz

50/60

Rated impulse withstand voltage Uimp, kV

Rated operating current In, A

Rated operating voltage AC 50/60 Hz Ue, V

230

Rated tightening torque, N·m

Warranty period (starting on purchase date)

One year

Wiring cable section - flexible, mm2

<=1x35 - <=2x16 - <=1x16+2x10

Wiring cable section - rigid, mm2

<=1x35 - <=2x16 - <=1x16+2x10

Working temperature, ˚С

-25 ... 60˚С

MT100 circuit breakers are designed to protect distribution and group AC networks with a rated voltage of no more than 400 V and a frequency of 50/60 Hz. The MT100, 10kA GEWISS circuit breaker provides reliable protection against overloads and short circuits. By choosing a GEWISS circuit breaker, you get a reliable level of safety, effective protection of the electrical network and durability.

Warranty period:1 рік гарантії

Individual

Group

Transport

Quantity

1 pcs

Units

pcs

pack

box

Weight

0.000 kg

0.157 kg

Volume

0.000000 m3

0.000292 m3

Length

0.000 m

Height

0.000 m

Width

0.000 m
