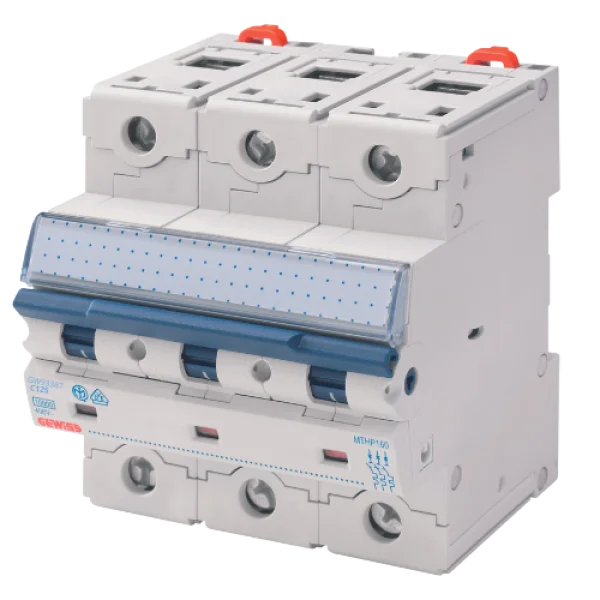

HIGH PERF. MCB 3P D80 16KA 4,5M

HIGH PERF. MCB 3P D80 16KA 4,5M

GW93387
Product price:
8 480.40uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Ambient temperature range, ˚С
-25 ... 70˚С
Availability
in all poles
Braking capacity, AC EN 60898 400V (Icn), A
10,000
Breaking capacity EN 60898
0,75 х Icn
Breaking capacity IEC/EN 60947-2 (Ics)
50% Icu
Breaking capacity IEC/EN 60947-2 400 V, kA
16
Breaking capacity, AC EN 60898 230В (Icn), А
10,000
Breaking capacity, AC IEC/EN 60947-2 230V (Icu), kA
20
Curve, type
D
Electrical endurance, B-O cycles, not less than
10000
Electrical endurance, cycles, not less than
10000
Insulation voltage Ui, V
500
Maintainability
unrepairable
Maximum operating voltage
440В AC
Mechanical endurance, cycles, not less than
20000
Minimum operating voltage
12В AC / DC
Number of poles
3P
Operating mode
long
Protection degree according to EN 60529
IP20
Rated frequency, Hz
50/60
Rated impulse withstand voltage Uimp, kV
230 - 400
Rated operating current In, A
80A
Rated operating voltage AC 50/60 Hz Ue, V
230 - 400
Rated tightening torque, N·m
3,5 / 3
Warranty period (starting on purchase date)
1 year
Wiring cable section - flexible, mm2
<=1x70 - <=2x25 - <=2x25+1x10
Wiring cable section - rigid, mm2
<=1x50 - <=2x25 - <=3x16
HIGH PERF MCB circuit breakers are designed to operate in AC power networks with a rated voltage of not more than 400 V and a frequency of 50/60 Hz.
Warranty period:1 рік гарантії
Warranty period:1 рік гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
4 pcs
Units
pcs
pack
box
Weight
0.772 kg
0.772 kg
3.432 kg
Volume
0.002041 m3
0.002041 m3
0.008000 m3
Length
0.000 m
0.000 m
0.000 m
Height
0.000 m
0.000 m
0.000 m
Width
0.000 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
Declarations
Link to the declaration
