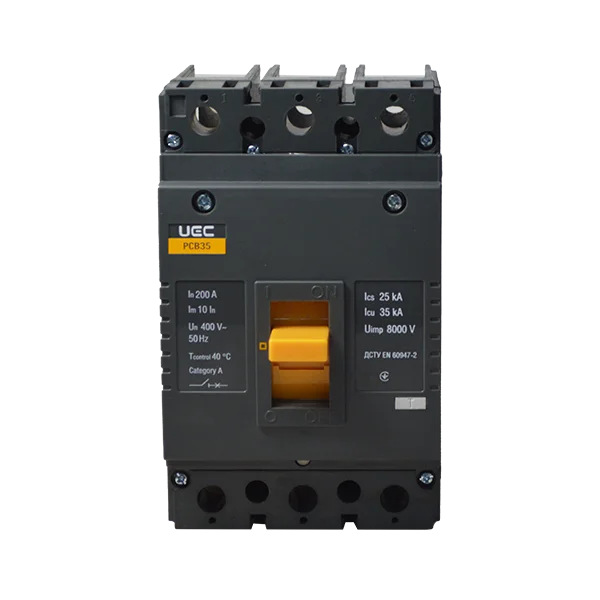

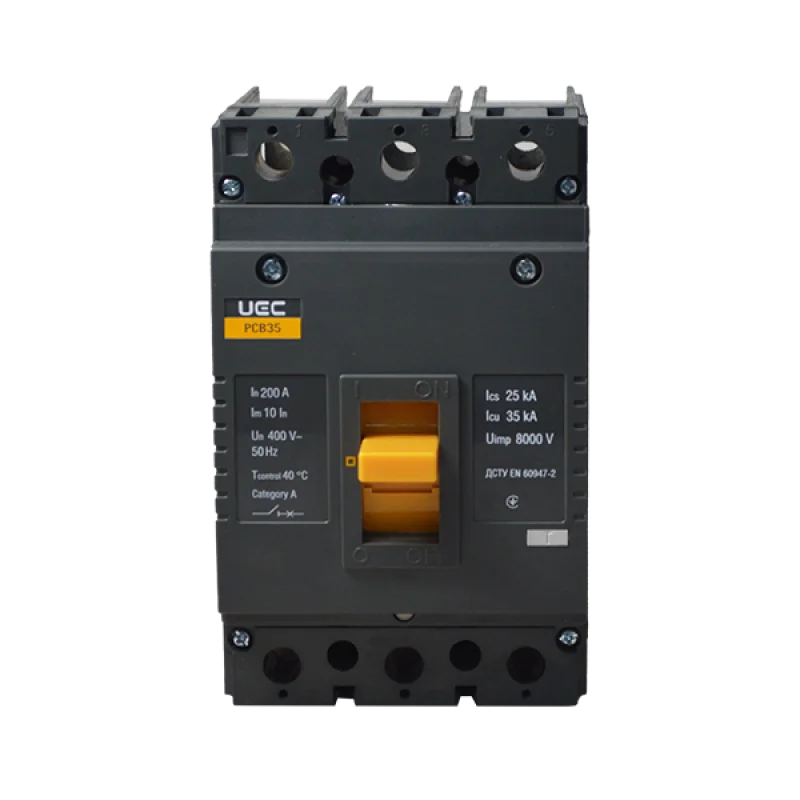

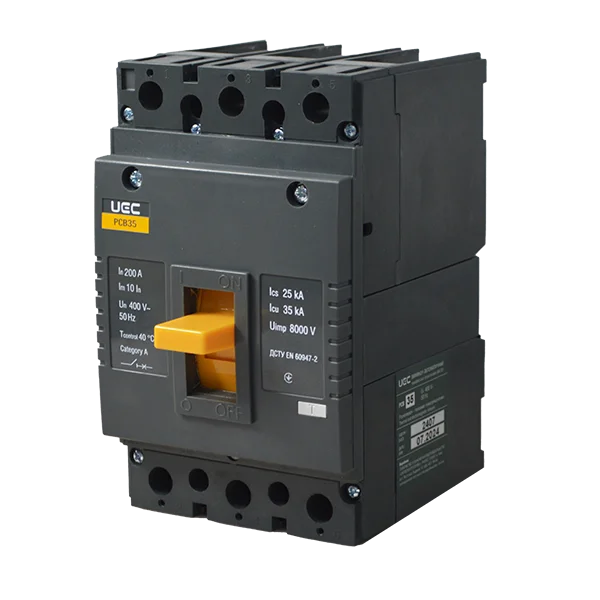

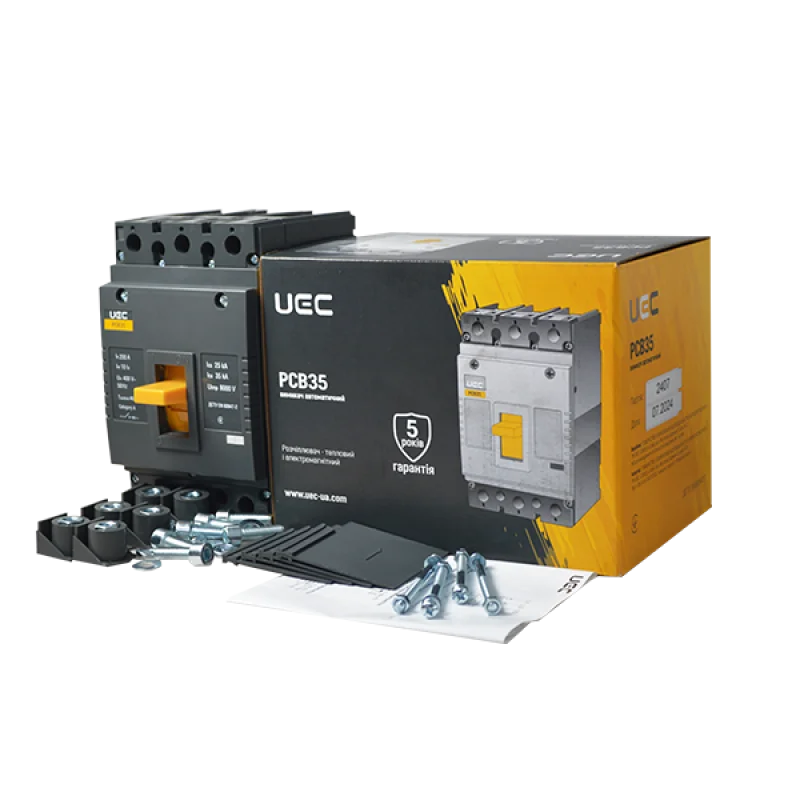

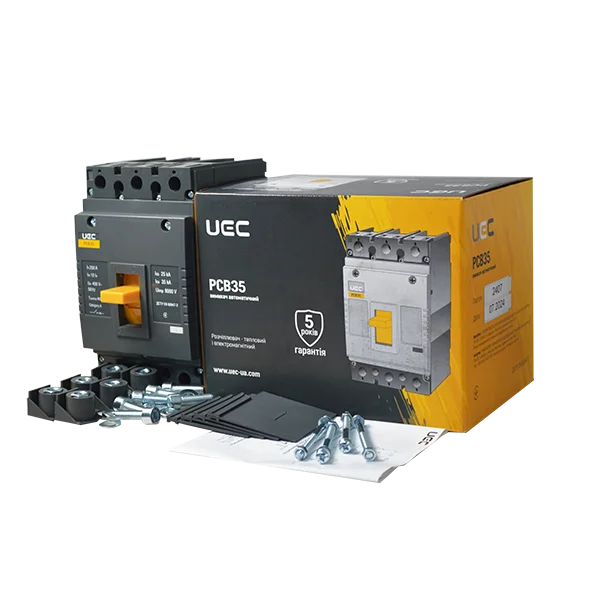

Molded case circuit breaker PCB35 3Р 200А 35кА UEC
Molded case circuit breaker PCB35 3Р 200А 35кА UEC
Molded case circuit breaker PCB35 3Р 200А 35кА UEC
Molded case circuit breaker PCB35 3Р 200А 35кА UEC Molded case circuit breaker PCB35 3Р 200А 35кА UEC Molded case circuit breaker PCB35 3Р 200А 35кА UEC

Molded case circuit breaker PCB35 3Р 200А 35кА UEC

MCCB-PCB-35-3-0200
Product price:
3 801.90uah/per unit
In Stock
Where to buy?
* The selected goods are formed into a file (article number, name, quantity) with the possibility of downloading this file for further purchase in one of our partner stores
  • Attributes
  • Product description
  • Logistics parameters
  • Technical documentation
Ambient temperature range, ˚С
-40 ... 60˚С
Breaking capacity (Icu) 400V, kA
35
Maintainability
repairable
Number of poles
3P
Operating mode
long
Rated frequency, Hz
50
Rated impulse withstand voltage Uimp, kV
8
Rated operating current In, A
200
Rated operating voltage AC 50/60 Hz Ue, V
400
Type of protection
Fixed thermal, fixed electromagnetic
Warranty period (starting on purchase date)
5 years
PCB automatic circuit breakers are designed for current conduction in normal mode and disconnection of current in case of short circuits, overload, unacceptable voltage drops, as well as for operational switching on and off of sections of electrical networks and are designed for operation in electrical installations with nominal operating voltage up to 400 V and nominal currents from 16 to 1600 A.
Warranty period:5 років гарантії
Warranty period:5 років гарантії
Individual
Group
Transport
Quantity
1 pcs
1 pcs
6 pcs
Units
pcs
pack
box
Weight
0.000 kg
0.000 kg
1.266 kg
Volume
0.000000 m3
0.000000 m3
0.001944 m3
Length
0.210 m
0.000 m
0.000 m
Height
0.140 m
0.000 m
0.000 m
Width
0.170 m
0.000 m
0.000 m
Passports
Link to passport
Certificates
Link to the certificate
